ExD enclosure

Hazardous Area Enclosure



Benefits

  • EExD Zone 1 Protection
  • II 2G Ex d IIB+H2 T5 Gb IP66 ‐20 °C ≤ Ta ≤ +55 °C
    II 2D Ex tb IIIC T100°C Db IP66
    (Including instrument)
  • Suitable for all Kemtrak 007 series instruments
  • Complete control of instrument



The Kemtrak hazardous area enclosure allows the installation of Kemtrak 007 series process analyzers in potentially explosive atmospheres.

The primary function of the Ex d enclosure is to separate any potential source of ignition from the surrounding atmosphere while protecting internal components from humidity, dirt, dust or water intrusion.

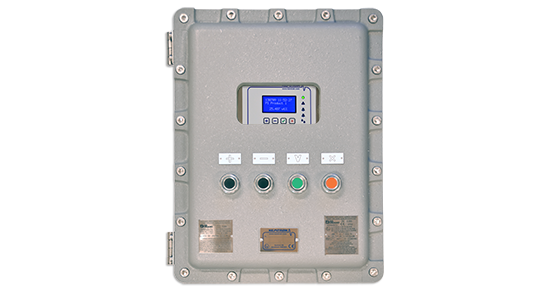

The analyzer display and status LED’s are viewed through the built in window. Four certified external push-buttons allow complete operation of the instrument without the need to open the enclosure.

All Kemtrak products use fiber optics to transmit ultra-low power cold light generated from a high performance LED light source within the instrument to an in line sensor assembly where the measurement takes place. With no on-board electronics, fiber optic connected in line sensors are ideally suited for use in explosive environments, and with no moving parts, essentially maintenance free.

All Hazardous Area Enclosures are delivered with Kemtrak 007 series analyzer pre-installed.



Kemtrak EExD Hazardous Area Enclosure

Kemtrak UL Hazardous Area Enclosure
